Upper-Deck Type
Patent No. 10-1074720
EnAi PAD™
Under-Deck Type
Patent No. 10-1244449

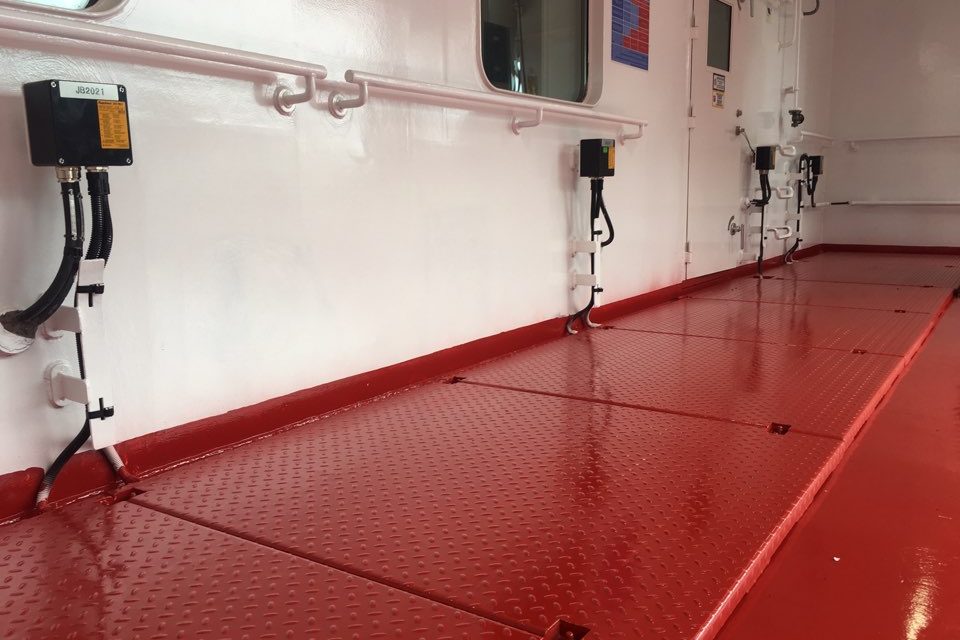

For the purpose of winterization, applicable to the deck of ships or offshore facilities, EnAi PAD™ is one of Anti-Icing / De-Icing systems to protect crew from safety accidents by preventing the surface of walkways exposed to cold climate from freezing.
Self-regulating heating cables and additional insulation blocks are applied to this system, which maximize the thermal efficiency and minimize the heat losses.
It is also applicable to the work space or folk-lift operating area on which heavy equipment or machineries operate.
The under-deck type EnAi PAD™ is installed under the deck for the prevention of freezing on the passage, escape route or deck platform. If the installation of the upper type causes problems or is interfered with deck equipment or machinery, under-deck type is recommended.
Images
Advantages
- Anti-Slip (Checkered Plate)
- Weight and Impact Resistance: Complying with rules & regulations
- Light Weight: Lighter than concrete and epoxy
- Easy Maintenance: Cost reduction for repair & replacement
- Experience based design and installation
- Satisfying NORSOK regulations
- Different types for different environments
- Easy installation and maintenance (cost and man-hour reduction)
Applicable Areas
- Escape Route
- Muster Station
- Rescue Zone
- Marine & Topside Deck
- Helideck Access
- Drilling Floor
- Moon Pool Area
Specification
| Application | SUS-23mm (1000mm x 1000mm) |
SUS-40mm (1000mm x 1000mm) |
SUS-45mm (1000mm x 1000mm) |
|||
|---|---|---|---|---|---|---|
| Type of Cables | Self-Regulating Heating Cable | |||||
| Supply Voltage | 208V ~ 277V (Standard : 230Vac) | |||||
| Rated output based on temperature of the surroundings(w/m) | 10℃ | 47 | 33 | 47 | 33 | 47 |
| -10℃ | - | - | - | - | - | |
| -20℃ | - | - | - | - | - | |
| -30℃ | - | - | - | - | - | |
| -40℃ | - | - | - | - | - | |
